VVDI Prog read Audi A6L Q7 EZS MC9S12

Xhorse VVDI-Prog read and flash EZS MC9S12 very fast within 2 minutes. Here is the Audi A6L/Q7 J158 MC9S12 pin out to VVDI Prog.

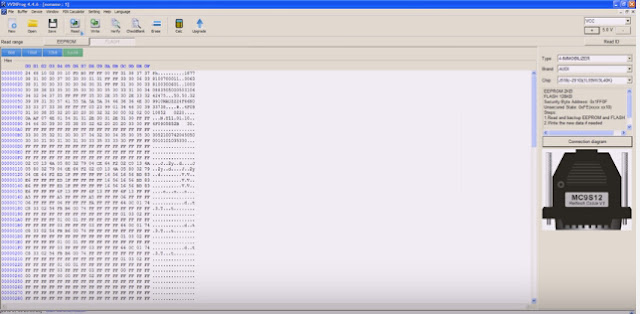

First select type, brand and chip, it will prompt to connect with MC9S12 adapter.
vvdi-prog-read-ezs-mc9s12-1
vvdi-prog-read-ezs-mc9s12-2
vvdi-prog-read-ezs-mc9s12-3
Audi A6L/Q7 J158 (--2010) 1L59W/3L40K(MC9S12DG128) full pinout
vvdi-prog-ezs-mc9s12-pin-out
Follow the pinout to solder and connect ezs well with vvdi prog programmer.
Click read to read ezs data
vvdi-prog-read-ezs-mc9s12
Read data very fast, start flashing data

vvdi-prog-flash-ezs-mc9s12
